ABOUT CLARK INDUSTRIES

OUR FACILITY

Clark Industries provides CNC machining & mechanical assembly for a wide range of industries and products in a state-of-the-art, climate controlled, 6,000 square foot facility in the heart of Bend, Oregon.

FACILITY SPECS

Office

Clean Room

Manufacturing Area

Integration and Assembly

Inspection

Packing and Shipping

Metal Parts
Slide
Bicycle
Hero Slide
Hero Slide
Haas TL
Hero Slide
CNC Automotive
Slide

OUR EQUIPMENT

Clark Industries uses the best machining and quality control equipment in the industry.

PRIMARY EQUIPMENT

HAAS EC400 with Pallet Pool Option
HAAS VF-2SS VERTICAL MACHINING CENTER
HAAS DS30 Mill/Turn Center
HAAS HRT210 4TH AXIS MEDIUM ROTARY
HAAS DM2 DRILL / MILL MACHINE

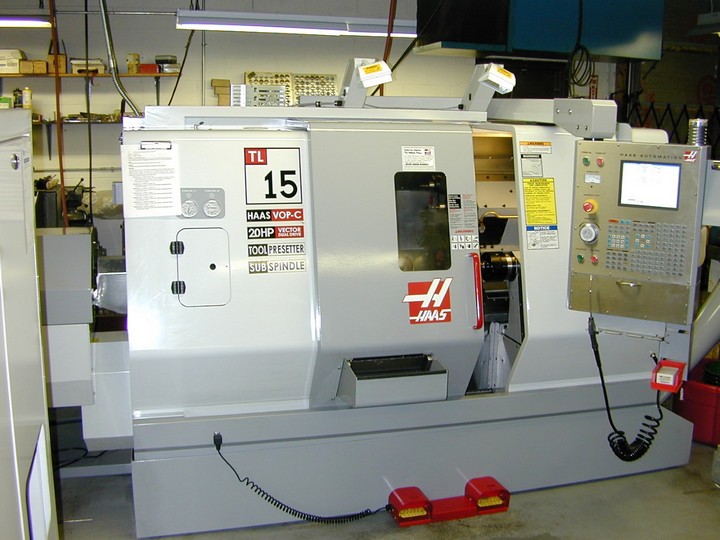

HAAS TL-15 MILL / TURN CENTER
HAAS ST-20 TURNING CENTER
MICROVU VERTEX

The EC400 offers robust performance with its 40-taper spindle, ensuring precise and efficient machining. With rapid feed rates and quick tool changes, the EC400 is designed for high-volume production and finishing tasks. The pallet pool system allows for uninterrupted machining. While one pallet is being machined, the other can be loaded or unloaded, ensuring continuous operation and reduced downtime.

Super-Speed Vertical Machining Center; 30″ x 16″ x 20″ (762 x 406 x 508 mm), 40 taper, 30 hp (22.4 kW) vector drive, 12,000 rpm, inline direct-drive, high-speed 24+1 side-mount tool changer, 1400 ipm (35.6 m/min) rapids, power-failure detection module, 1 GB program memory, 15″ color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

The DS-30Y Y-axis turning center combines dual-spindle turning with Y axis, C axis, and live tooling to create a powerful “done-in-one” machining solution for any shop. Off-center milling, drilling, and tapping operations are possible for increased machining capabilities. It comes standard with a 12-station BMT65 turret and synchronized C axis for versatile 4-axis capability. The opposed spindles support fully synchronized turning, and allow on-the-fly part pass-off to reduce cycle times. The DS-30Y has a medium footprint, yet provides a generous work envelope. This machine offers the best performance for the money – the best value – in it’s class.

  • Dual-spindle design for done-in-one operations
  • Y-axis milling, drilling, and tapping
  • Ideal for high-volume, high-production environments
  • Made in the USA

The HRC210 is a compact, high-speed rotary table driven by a high-performance roller cam system that provides indexing speeds up to 830°/second. SPINDLES: 1; PLATTER SIZE: 210 mm; MAX TORQUE: 210 ft-lb; MAX SPEED: 100 °/sec

The DM-2 is a compact, high-speed machining center built with proven Haas components and sub-assemblies. It is identical in construction and specifications to the DM-1, with the addition of 8" of X-axis travel and table length. The machine’s shop-proven 40-taper inline spindle, 18+1 tool changer, high acceleration rates, fast rapids, and impressive short tool-change times make the DM-2 an attractive high-productivity machining center.

Capacity - Maximum Swing / Swing Over C.S.: 23" / 9.5"; Maximum Cutting Diameter / Maximum Turning Length: 8.2" / 17.5"
Main Spindle - Speeds 50: 7,000 RPM; Spindle Bore / Bar Cap / Spindle Nose: 1.3125
Sub-Spindle - Speeds: 0 - 4,000 RPM
Travels - X-Travel: 7.5", Z-Axis Travel: 17.5"

HAAS re-engineered everything – from the ground up – to create a more rigid machine, with larger bar capacity, superior cutting performance, and a host of productivity-enhancing options. Larger spindle bore for increased bar capacity; Increased Z-axis travel; Made in the USA; 4000-rpm Spindle; CHUCK SIZE: 8.3"; BAR CAPACITY: 2.5"; RPM: 4k; POWER: 20 hp

Micro-Vu's InSpec Metrology Software provides point-and-click simplicity, proprietary edge detection, advanced lighting control and calibration, multi-sensor integration, automated calibrations, and a clear display of measurement data and tolerances.

READY TO DISCUSS YOUR PROJECT?

Drop us a line today for a free quote!
